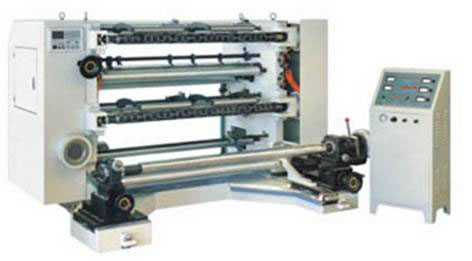

العربيةVertical Automatic Slitting and Rewinding Machine
This vertical automatic slitting and rewinding machine is mainly used for trimming cutting and rewinding various required roll materials during production, such as aluminum foil, paper, BOPP, PET, CPP, CPE, PVC, etc. Adopting independent master control panel, our product is easy and flexible for operation. With automatic EPC error correcting device, its photoelectric eye is applicable for tracking the edge and color of transparent materials. Due to the pneumatic shaft and magnetic powder brake tension control, our product allows automatic material loading. Yet it adopts double cam shafts with magnetic powder clutch to unload materials. In addition, the motor of this machine uses frequency converter on speed regulation. Equipped with waste material conveying device and automatic meter calculation device, this product saves much labor source.
Technical Parameters| Type | JFQ-H700B | JFQ-H1100B | JFQ-H1300B |
| Max. Width of Roll Material | 700mm | 1100mm | 1300mm |
| Max. Diameter of Roll Material | 600mm | 600mm | 600mm |
| Max. Unwinding Diameter | 700mm | 700mm | 700mm |
| Max. Rewinding Diameter | 450mm | 450mm | 450mm |
| Width of Final Roll | 30-600mm | 30-600mm | 30-600mm |
| Slitting and Rewinding Speed | 5-160m/min | 5-160m/min | 5-160m/min |
| Tolerance of EPC | < ±0.5mm | < ±0.5mm | < ±0.5mm |
| Total Power | 2.7kw | 3.5kw | 3.5kw |
| Weight of Machine | 1200kg | 1500kg | 1800kg |
| Overall Dimension | 2000×1110×1400mm | 2400×1110×1400mm | 2600×1110×1400mm |
We are a China-based vertical automatic slitting and rewinding machine manufacturer. We offer a variety of products, including electronic label die cutting machine, hot melt glue machine, self adhesive lamination machine, paper slitter machine, and much more.
