JFQ-320 Automatic PP/PVC/OPP/PET/PE Adhesive Tape Roll Slitting Machine

Home » Products » Slitting Machine, Die-Cutting Machine » JFQ-320 Automatic PP/PVC/OPP/PET/PE Adhesive Tape Roll Slitting Machine
JFQ-320 Automatic PP/PVC/OPP/PET/PE Adhesive Tape Roll Slitting Machine

Product Introduction

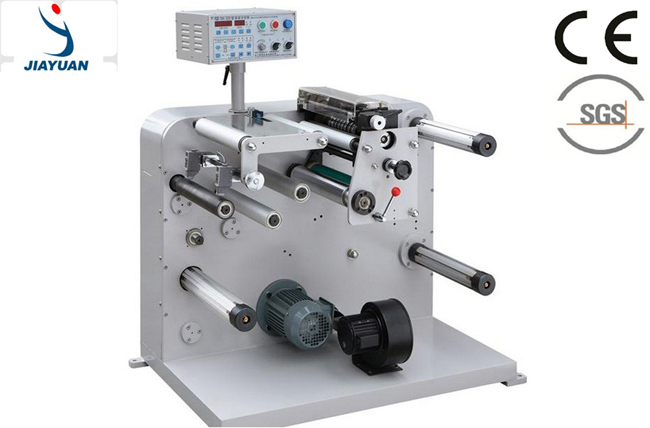

The JFQ-320 automatic PP adhesive tape roll slitting machine is an auxiliary product for automatic die cutting machine. It is used for narrow range of paper cutting. It can meter automatically, set length and number, stop by itself, and control the unwinding by photoelectric automation correction.
This machine is well structured with fast speed and high efficiency. And it is easy to operate with a smooth running.

Technical Parameters
Model JFQ-320
Max Web Width 320mm
Max Diameter of Unwinding Roll 500mm
Max Diameter of Rewinding Roll 480mm
Deviation of Slitting ±0.1mm
Motor Power 0.75kw
Overall Dimension 1100×900×1300mm
Weight 400kg
