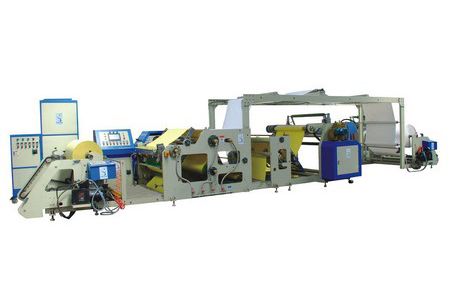

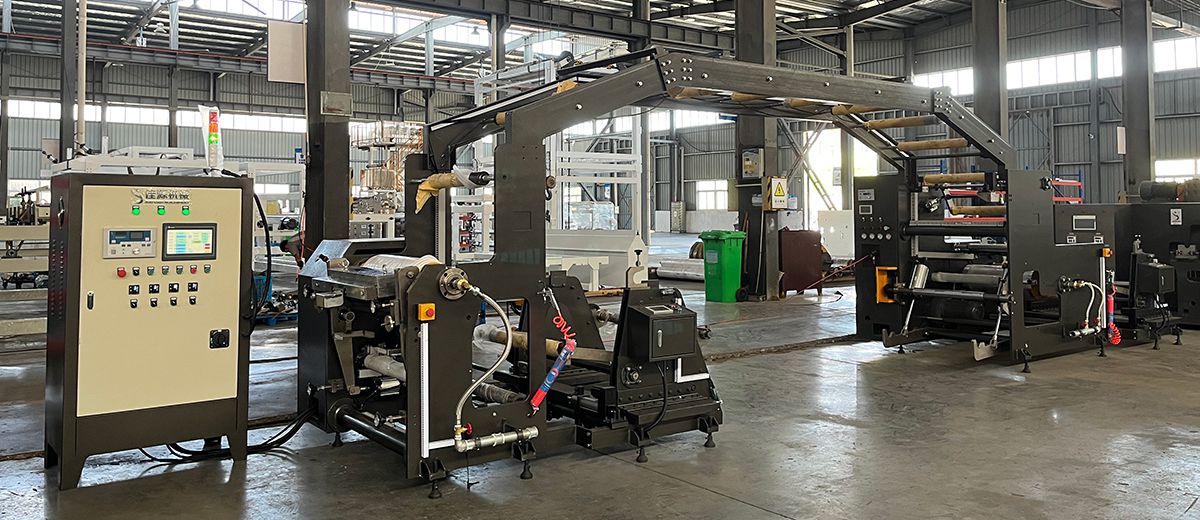

High Speed Pressure-Sensitive Hot Melt Adhesive Coating Machine, JYT-GF
Hot melt coating and laminating machine

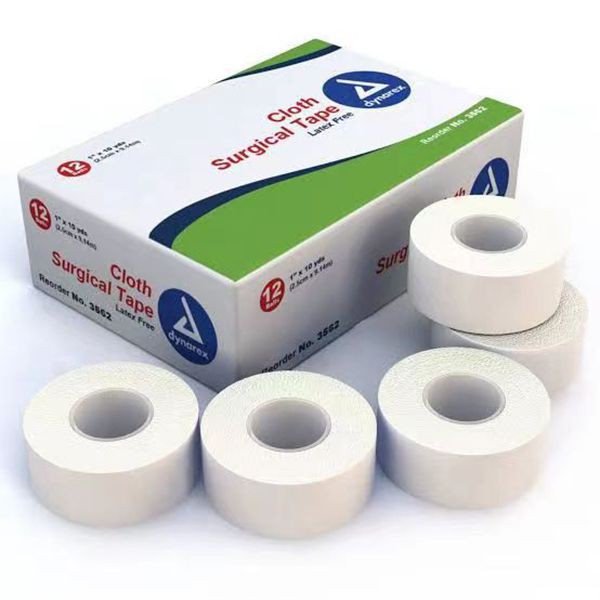

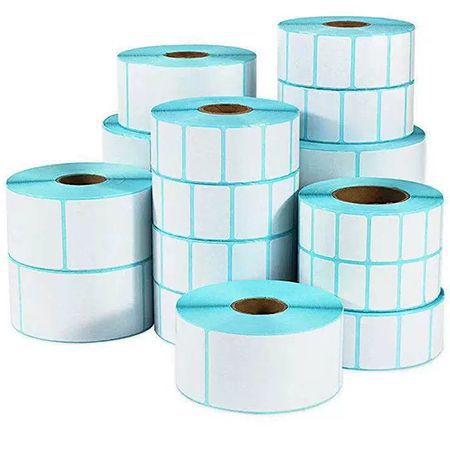

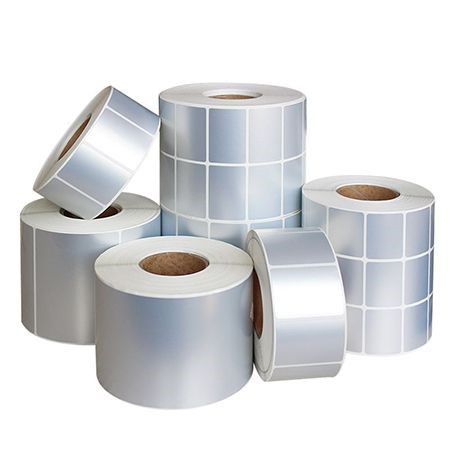

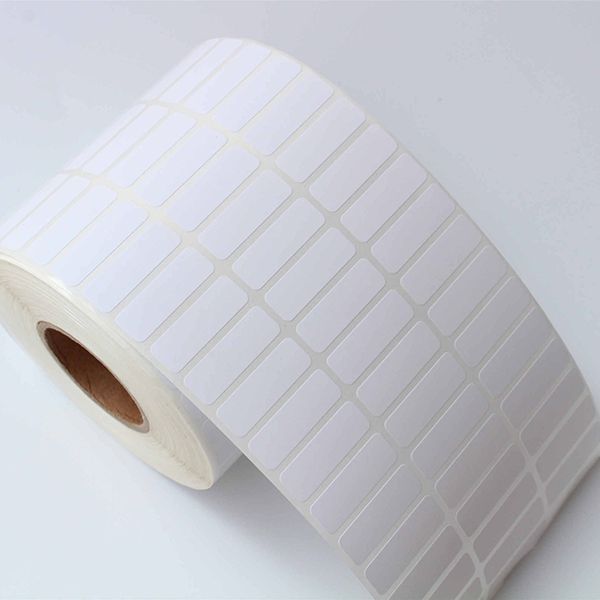

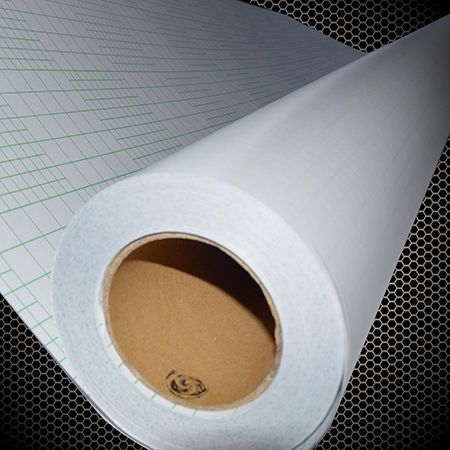

JYT-GF high speed pressure-sensitive hot melt adhesive coater is designed for coating with pressure-sensitive hot melt adhesive, suitable for handling self-adhesive labels, thermal labels, adhesive tapes, advertising photographic supplies, and other materials with poor temperature resistance. Along with fiber-reinforced adhesive spraying system, the coater is able to composite PE film and non-woven fabric. Additionally, the machine can be configured with a dedicated PUR hot melt adhesive machine for compounding premium materials.
Specifications
| Model | JYT-GF |
| Coating Width | 400-2000mm |
| Coating Weight | 10-200g/m² |
| Coating Speed | 200m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 1000mm |
| Web Guide System | 2 sets |
| Length | 12000mm |
| Height | 2600mm |
| Power | 38-60kW |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Features
- Coating speed and adhesive supply speed can be manually adjusted or automatically synchronized.
- Intelligent PID temperature control system, ensuring an error within 1℃.
- All active rollers and passive guide wheels have been corrected by high-precision dynamic balancing equipment. With well-arranged assembling process, the machine runs smoothly with low noise, preventing composite materials from wrinkling and thus ensuring excellent production quality.
- High-precision alloy applicator head and gear metering pump ensure high coating quality.

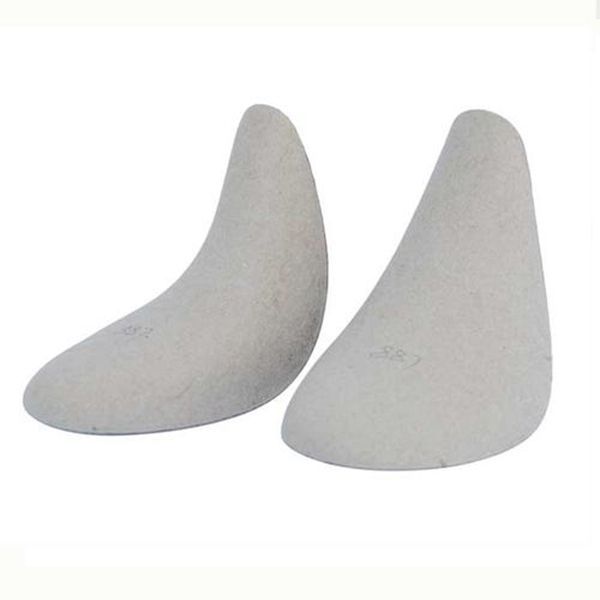

- With the fiber-reinforced adhesive spraying system, combining of PE film and non-woven fabric can be performed, which allows for the production of specialty filter materials, shoe materials, medical materials and other specialty materials. Fiber-reinforced adhesive spray features relatively low amount, good uniformity and fineness, which makes the coating breathable.
Main Components

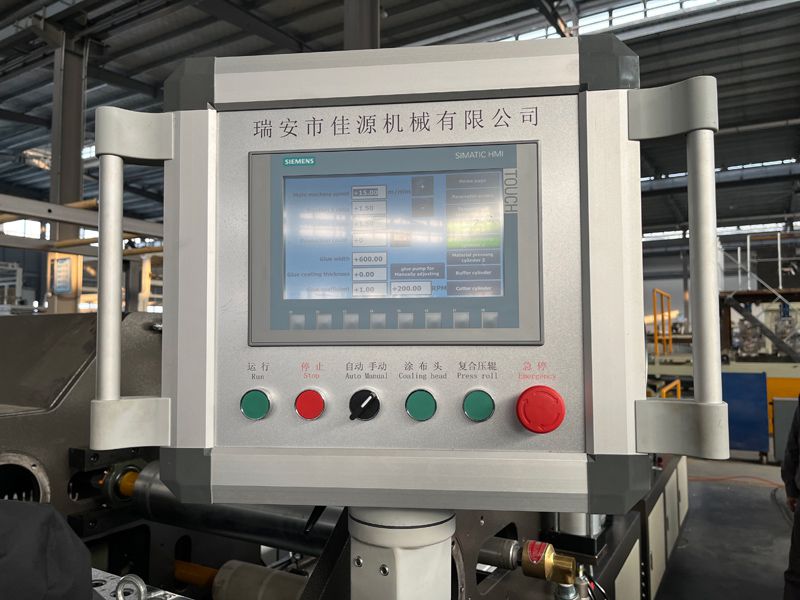

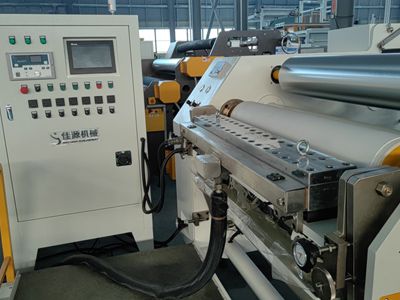

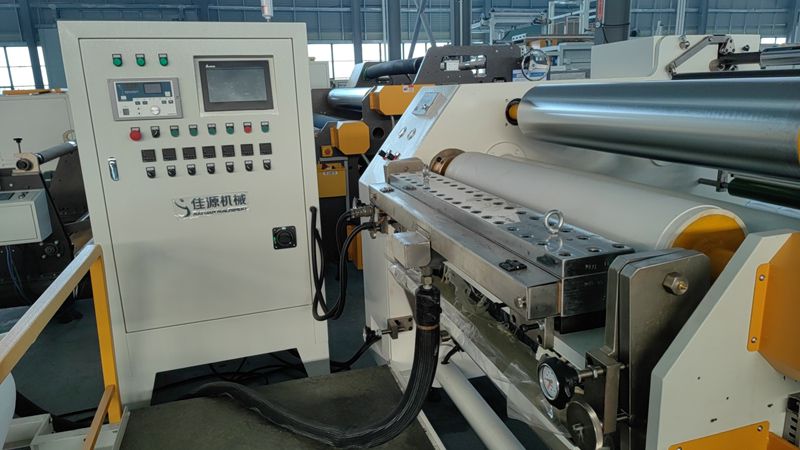

PLC control system

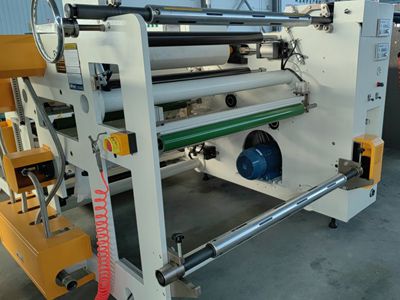

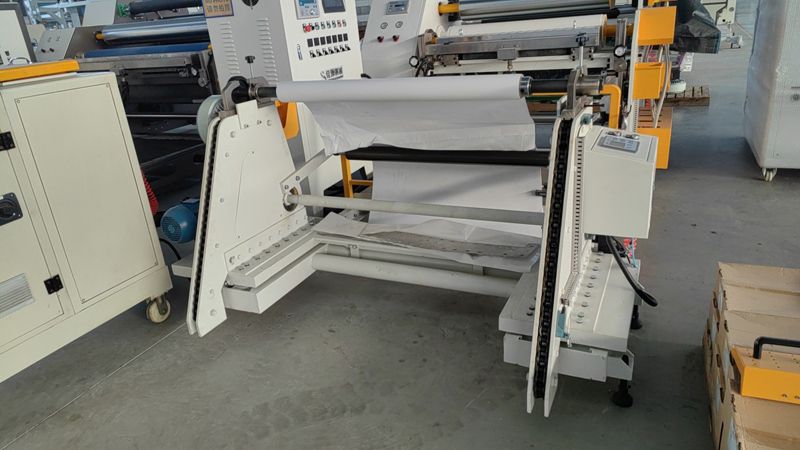

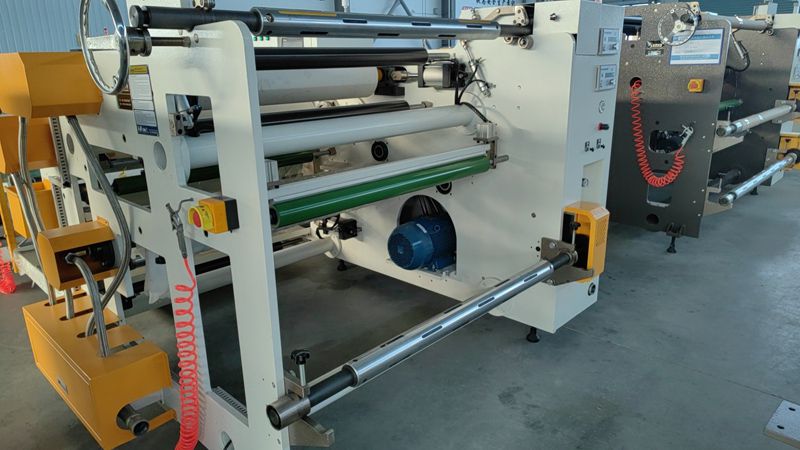

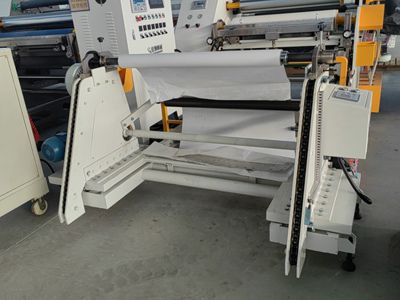

Winding mechanism
Winding mechanism

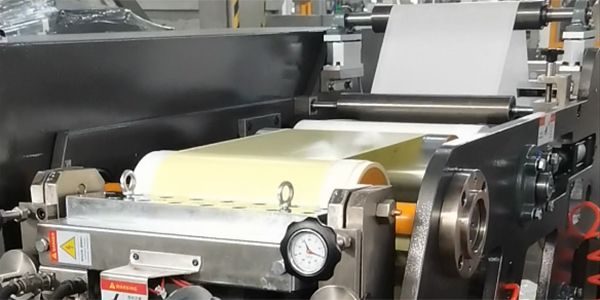

Gluing system
