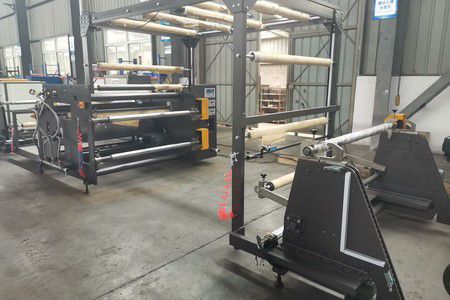

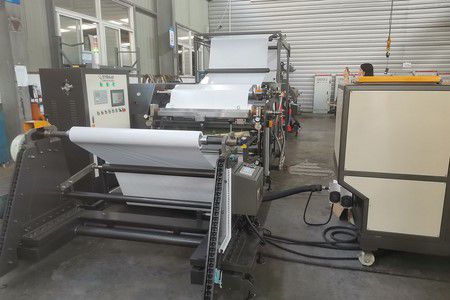

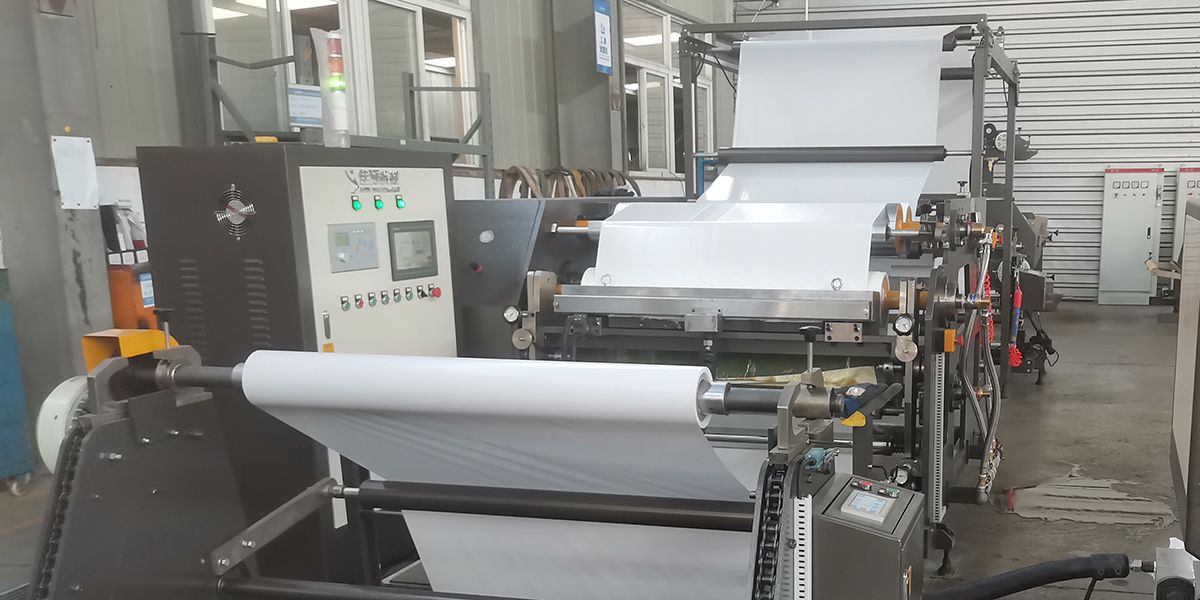

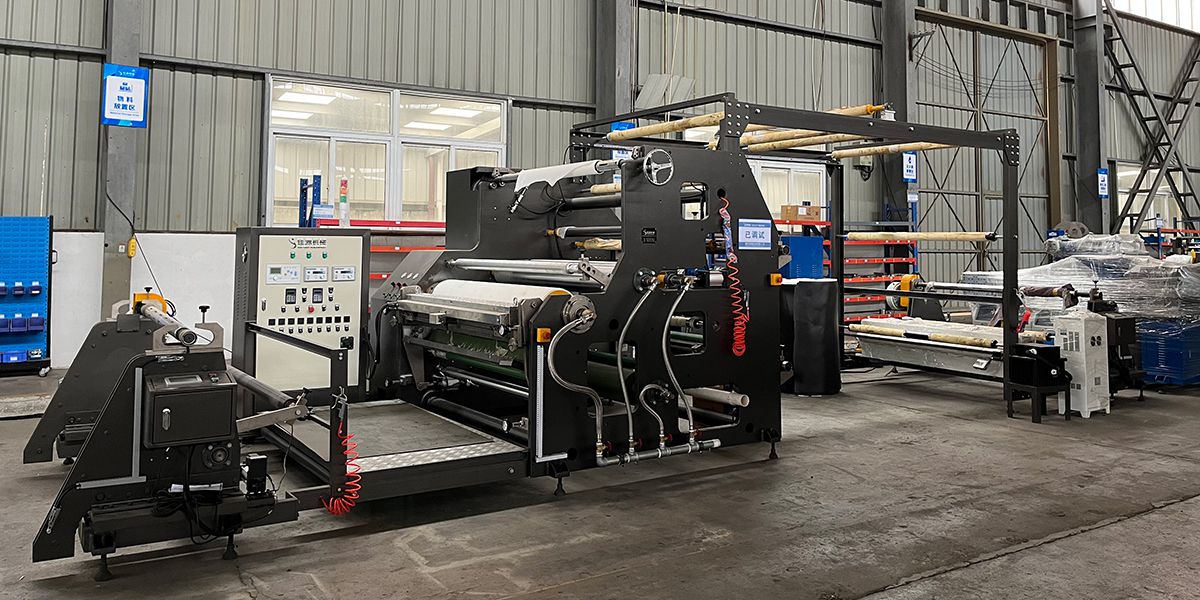

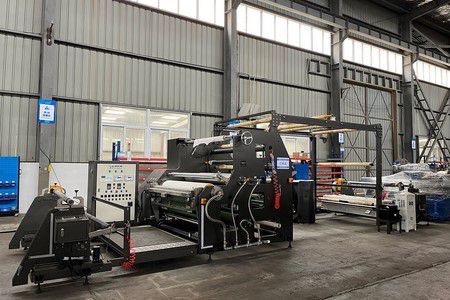

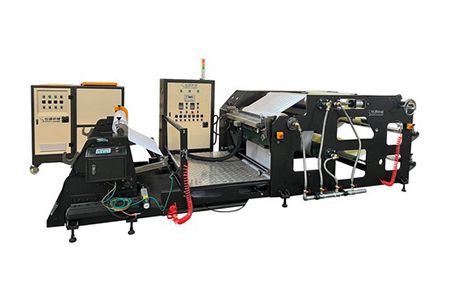

    Hot Melt Adhesive Coating Machine, JYT-H

    Hot melt coating and laminating machine
    Hot Melt Adhesive Coater
    Hot Melt Adhesive Coater Hot Melt Adhesive Coater Hot Melt Adhesive Coater
    Request a Quote

    The JYT-H hot melt adhesive coater is an upgrade version of the JYT-B model. In addition to all the functionalities of the JYT-B, the JYT-H has both first and second unwind stands on independent frames, featuring automatic web guiding to ensure a superior coating quality.

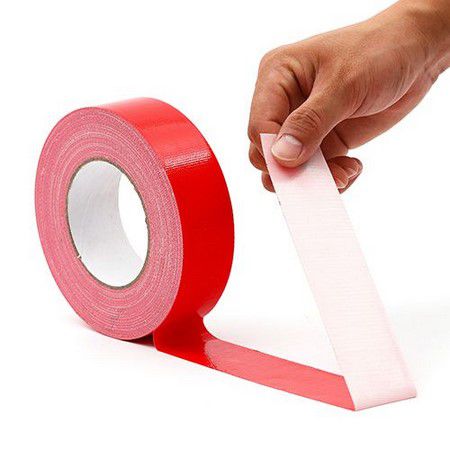

    Suitable for processing of self-adhesive products, such as self-adhesive trademark paper, double-sided adhesive tapes, foam tapes, cloth tapes, kraft paper tapes, masking tapes, and fiber tapes. Also able for compositing various materials like non-woven fabric, filter materials, medical materials, labels, etc.

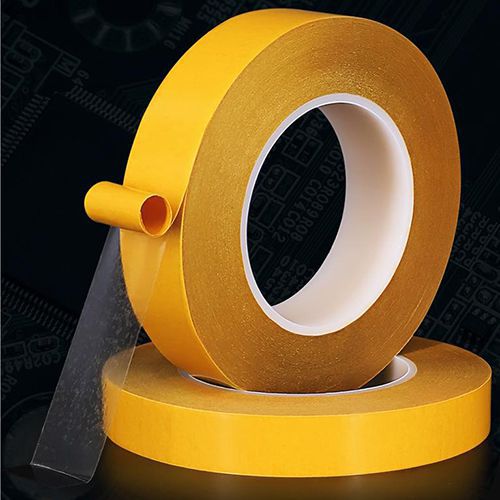

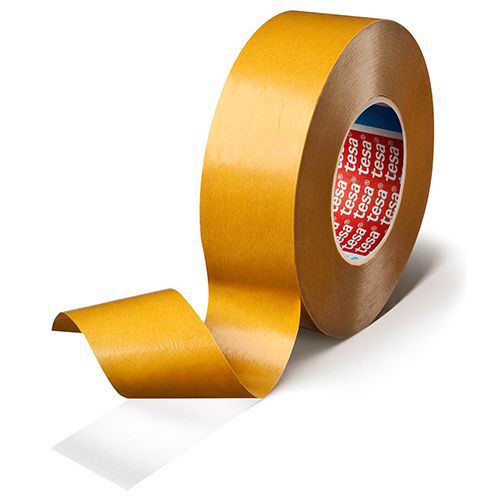

    • Double-sided adhesive tape Double-sided adhesive tape
    • Medical tapeMedical tape
    • Double-sided adhesive tapeDouble-sided adhesive tape
    • Fiber tapeFiber tape

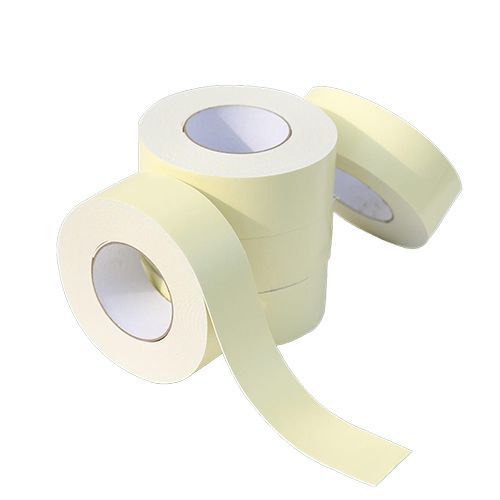

    • Foam tapeFoam tape

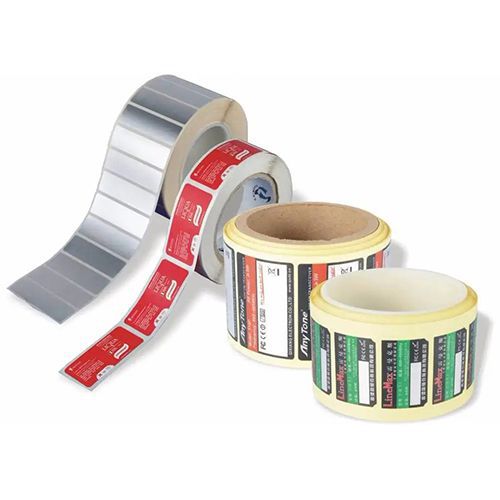

    • Self-adhesive labelSelf-adhesive label
    Specifications
    Model JYT-H
    Coating Width 400-2000mm
    Coating Weight 10-200g/m²
    Coating Speed 50-100m/min
    Unwind Diameter 1000mm
    Rewind Diameter 1000mm
    Web Guide System 2 sets
    Length 8500mm
    Height 2400mm
    Power 38-60kW
    Power Supply 380v±15% 50Hz

    Parameters can be adjusted according to specific customer requirements.

    Features
    • Both first and second unwind stands on independent frames, featuring automatic web guiding to ensure more ideal coating quality.
    • The unwind stands are equipped with electric lifting function for material lowering.
    • All functionalities of JYT-B hot melt adhesive coater.
    Main Components
    • PLC control systemPLC control system
    • Winding mechanismWinding mechanism
    • Winding mechanismWinding mechanism
    • Gluing systemGluing system
    Find the equipment you are looking for
    • Double-Sided Hot Melt Adhesive Coater
      Double-Sided Hot Melt Adhesive Coating Machine, JYT-II

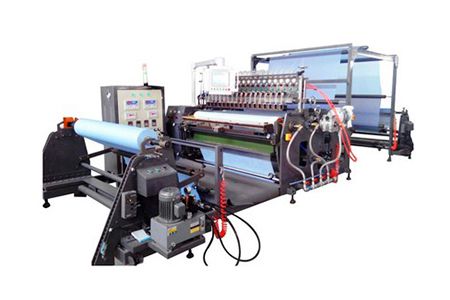

    • Hot Melt Spray Coater Laminator
      Hot Melt Spray Coater Laminator, JYT-H
    • Hot Melt Adhesive Coater
      Hot Melt Adhesive Coating Machine, JYT-B
    Adhesive Coating Machines
    • Hot Melt Adhesive Coating Machine
        Hot Melt Adhesive Coating Machine, JYT-B Hot Melt Adhesive Coating Machine, JYT-H Double-Sided Hot Melt Adhesive Coating Machine, JYT-II Hot Melt Spray Coater Laminator, JYT-H
    • Hot Melt Adhesive Extrusion Coating Machine
    • High Speed Hot Melt Adhesive Coating Machine
    • Narrow Web Hot Melt Adhesive Coating Machine
    • Other Adhesive Coating Machine
    Waterproofing Membrane and Tape Production Line
    • Butyl Tape Production Line
    • Butyl Self-Adhesive Waterproofing Membrane Production Line
    • Polymer Self-Adhesive Waterproofing Membrane Production Line
    • Anti-Sticking Self-Adhesive Waterproofing Membrane Production Line
    • Lap Tape Production Line
    • Butyl Self-Adhesive Waterproof Strip Production Line
    About Us
    We are looking forward to getting in touch with you

    Please fill in the form below and we will contact you very soon.

    Based On Your Application

    We design and manufacture both adhesive coating machines and complete tape lines for your production needs of medical tapes, labels, or other industrial and specialty tapes

    • Label & Tape
      Label & Tape
    • Shoe Materials
      Shoe Materials
    • Automotive Decoration
      Automotive Decoration
    • Food Packaging
      Food Packaging
    • Medical Materials
      Medical Materials
    • Waterproofing Construction Materials
      Waterproofing Construction Materials
    View All
    Case Studies
    • Case Studies
      • Year: 2023

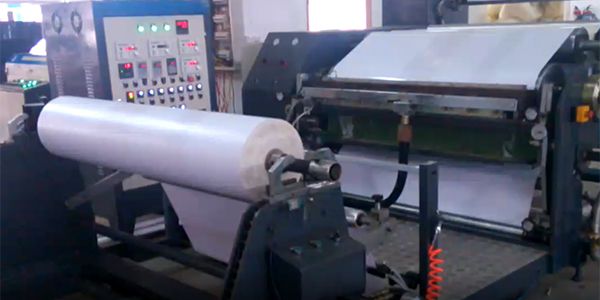

      • JSP hot melt adhesive film extrusion coater
    • Case Studies
      • Year: 2020
      • Waterproofing membrane production line (for 3m wide substrate)
    • Case Studies
      • Year: 2019
      • JYT-B hot-melt adhesive coater
    • Case Studies
      • Year: 2019
      • JYT-H hot-melt adhesive coater
    • Case Studies
      • Year: 2018
      • Multifunctional medical tape coating machine
    • Case Studies
      • Year: 2017
      • JYT-B hot-melt adhesive coater
    • Case Studies
      • Year: 2016
      • JYT-H hot-melt adhesive coater
    • Case Studies
      • Year: 2012
      • JYT-H hot-melt adhesive coater
    You may also be interested in…
    • Hot Melt Adhesive Film Extrusion Coating Machine
      Hot Melt Adhesive Film Extrusion Coating Machine, JYJ

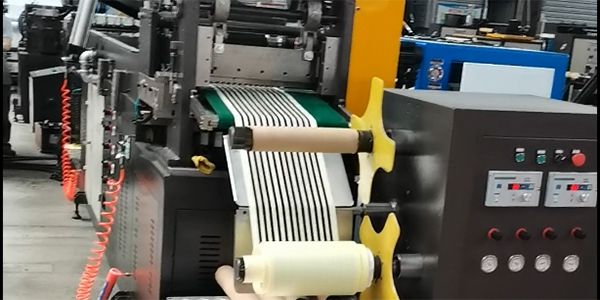

    • Butyl Sealant Tape Extrusion Coating Machine
