Polymer Self-Adhesive Waterproofing Membrane Production Line

Complete coating line for non-bitumen-based polymer backing
Polymer Self-Adhesive Waterproofing Membrane Production Line
Request a Quote

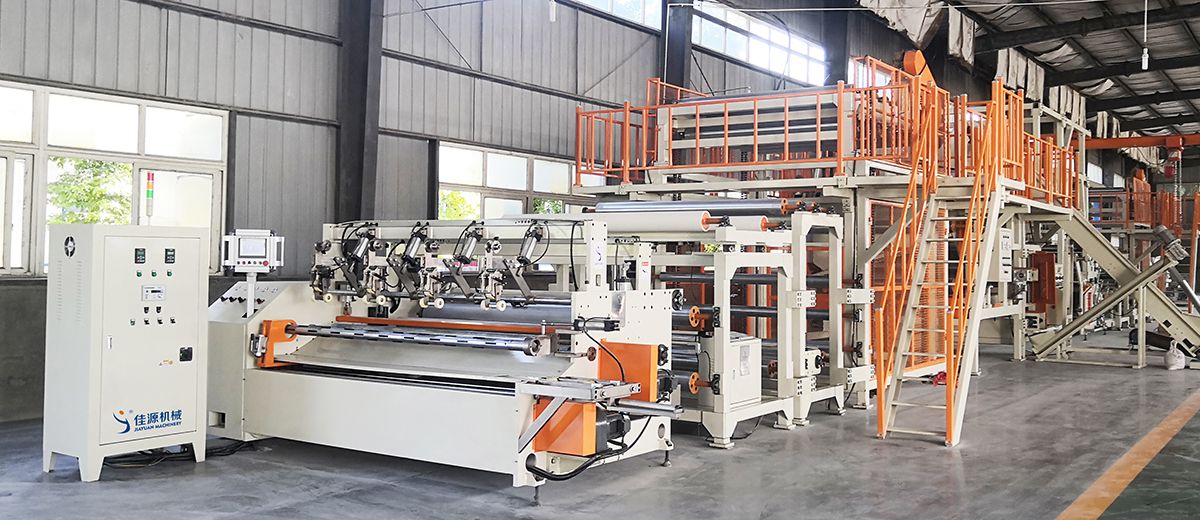

The polymer self-adhesive waterproofing membrane production line comprises front material storage, adhesive coating, film laminating, sand placement, material storage, automatic cutting, winding, and unloading devices. With automatic edge correction system, adhesive applicating pressure stabilizing system, and PLC touchscreen control, high automation is achieved, reducing labor costs while offering convenience. The produced waterproofing membrane is primarily used in construction, leak repair, sealing, wind power, battery, etc. industries.

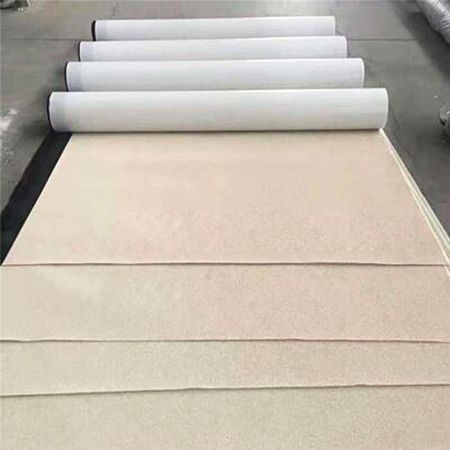

  • Product samples

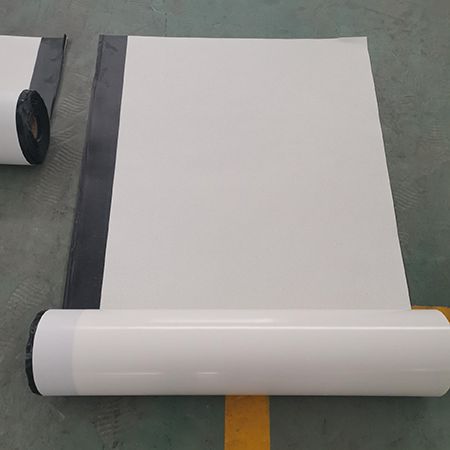

  • Product samples
Specifications
Effective Coating Width 1000-4000mm
Coating Weight 80-500g/m²
Machine Speed 1-30m/min
Power Supply 380v±15%50Hz

Parameters can be adjusted according to specific customer requirements.

Features
  • Automatic edge correction system, adhesive applicating pressure stabilizing system, as well as touch screen PLC control.
  • Specially designed applicator head flow channel, ensuring uniform and precise application and non-stop material changing.
  • Highly automated, convenient operation, labor-saving and material-saving.
  • Membrane width customizable upon request.
Main Components
  • Automatic winding mechanismAutomatic winding mechanism
  • Glue moldGlue mold
  • The isolation film composite mechanism of the coating machineThe isolation film composite mechanism of the coating machine
  • Device Backcoating deviceDevice Backcoating device
  • Automatic feeding system of gluing machineAutomatic feeding system of gluing machine
  • Waterproof material production equipment automatic sand mechanismWaterproof material production equipment automatic sand mechanism
  • Automatic deviation correction hydraulic unwinding machineAutomatic deviation correction hydraulic unwinding machine
Related Products
Based On Your Application

We design and manufacture both adhesive coating machines and complete tape lines for your production needs of medical tapes, labels, or other industrial and specialty tapes

View All
Case Studies
  • Case Studies
    • Year: 2023
    • JSP hot melt adhesive film extrusion coater
  • Case Studies
    • Year: 2020
    • Waterproofing membrane production line (for 3m wide substrate)
  • Case Studies
    • Year: 2019
    • JYT-B hot-melt adhesive coater
  • Case Studies
    • Year: 2019
    • JYT-H hot-melt adhesive coater
  • Case Studies
    • Year: 2018
    • Multifunctional medical tape coating machine
  • Case Studies
    • Year: 2017
    • JYT-B hot-melt adhesive coater
  • Case Studies
    • Year: 2016
    • JYT-H hot-melt adhesive coater
  • Case Studies
    • Year: 2012
    • JYT-H hot-melt adhesive coater
Frequently Asked Questions

Web coating is the continuous application of coatings, whether they are solid or liquid, onto specific substrates to achieve new functionality. This technology can be used on a wide range of substrates, such as plastics, paper, and even metals.

The web coating process is used in many industrial applications, including pressure-sensitive tapes and labels, flexible packaging, photographic films, coated vinyl, wall coverings, sandpapers and other abrasives, corrugated boxes, vinyl flooring, production of industrial and decorative laminates, carbon and carbonless papers, RFID tags, and printed circuit boards.

Different types of coating lines may be found in each industry, but generally, every system is based on a roller design and includes a metering system for applying the coating material onto the substrate, as well as a drying tunnel, conveying system, or transfer system.

Roll-to-roll processing is a film processing method that embeds, coats, prints, or laminates various fluid materials onto flexible roll-shaped substrates, which are then continuously transported from one roll to another (unwind to rewind).
