Hot Melt Adhesive Film Extrusion Coating Machine, JSP
Hot melt coating machine suitable for making toe puffs and counters

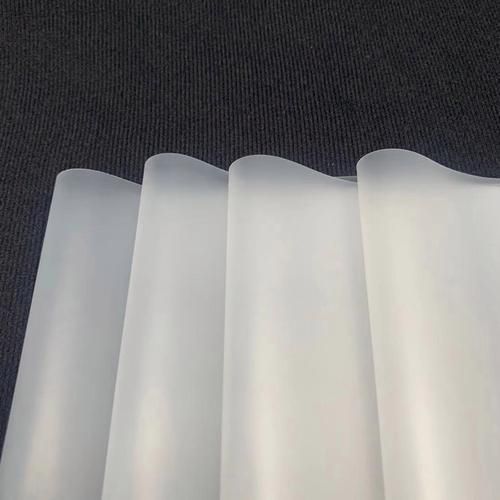

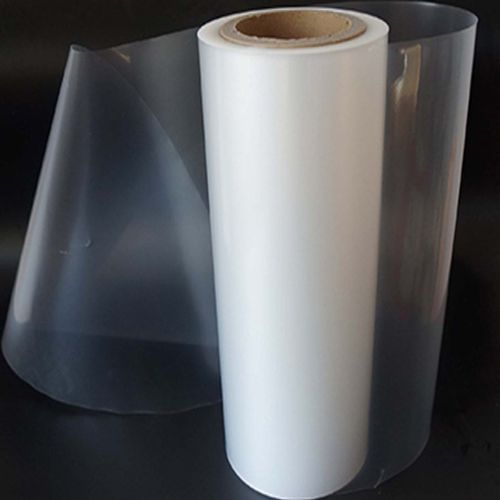

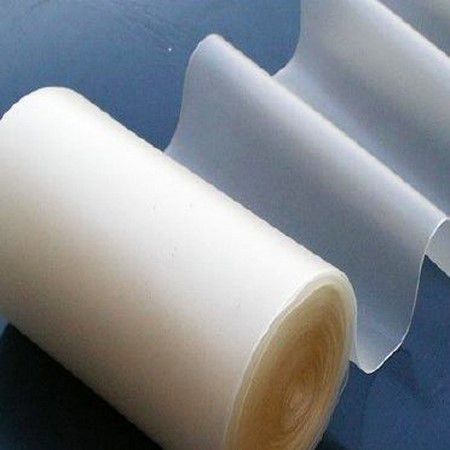

Our JSP hot melt adhesive film extrusion coater, designed and manufactured based on advanced technologies from worldwide, primarily features major parts made from nitrided 38CRMOALA alloy steel for wear and corrosion resistance. Screw with optimized aspect ratio ensures excellent plastification performance, producing highly uniform adhesive film. Ideal for the manufacturing of hot melt adhesive film, hot melt adhesive toe puffs, fine fabric, etc.
Specifications
| Model | | |
| Coating Width | 400-1600mm | |
| Coating Weight | 20-2000g/m² | |
| Film Width | 1000mm | 1500mm |
| Film Thickness | 0.3-2.0mm | 0.3-2.0mm |
| Screw Diameter | 115mm | 120mm |
| Main Motor Power | 55kw | 75kw |
| Max. Yield | 400kg/h | 500kg/h |
| Total Power | 80kW | 100kW |
| Dimensions | 12×12×2.4m | 13×12×2.4m |
| Power | 38-60kW | |
| Power Supply | 380v±15% 50Hz | |
Parameters can be adjusted according to specific customer requirements.
Features
- Major parts including screw, screw barrel, applicator head, etc. are made from nitrided 38CRMOALA alloy steel, ensuring excellent wear and corrosion resistance.
- Optimized screw aspect ratio ensures adhesive layer uniformity.
- Applicator head employs a motorized up-and-down device for filter web replacement, ensuring convenience and efficiency. (Automatic feeding system is available upon customer request.)
Main Components

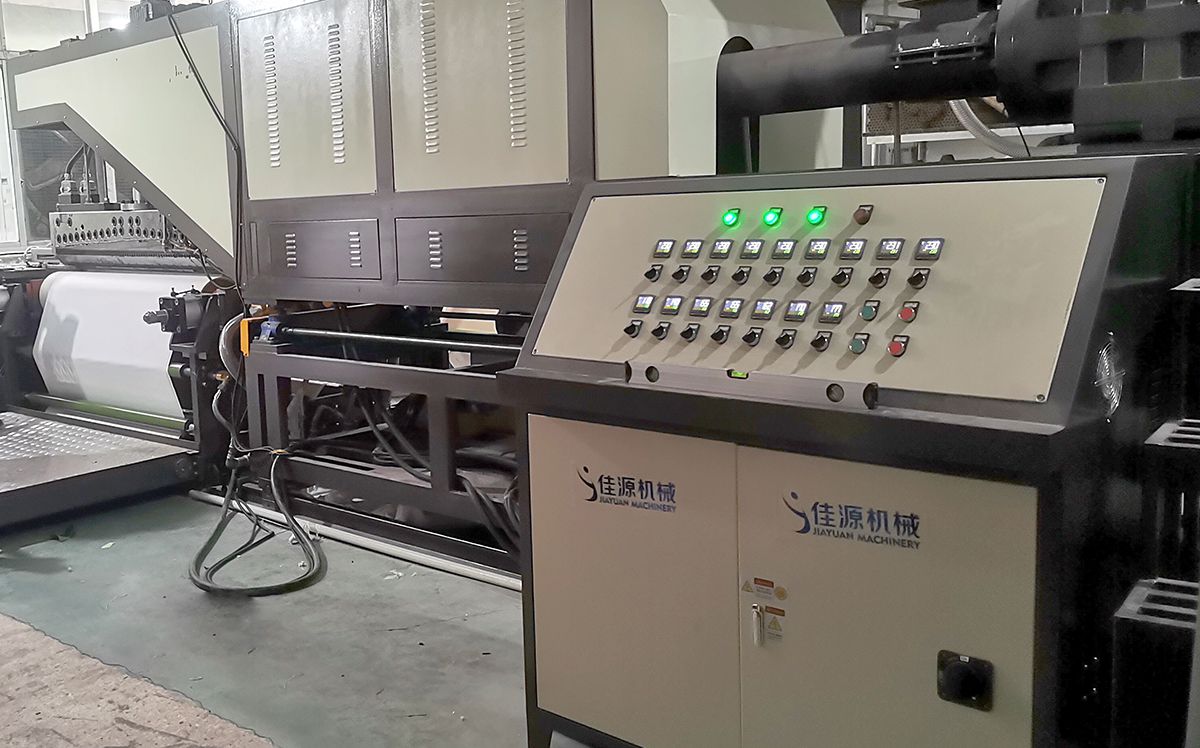

PLC control system
Winding mechanism
Winding mechanism
Gluing system
