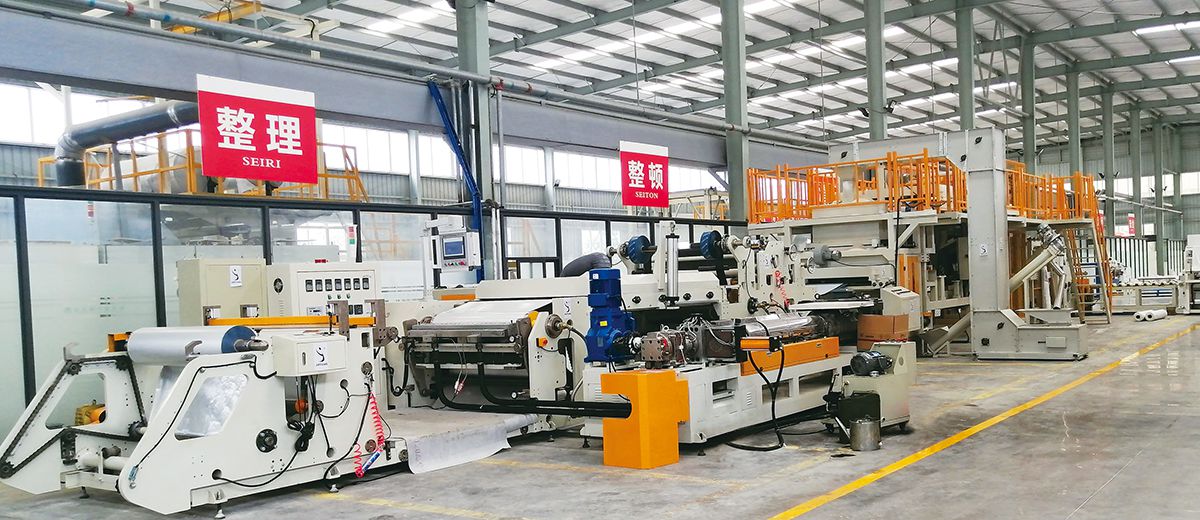

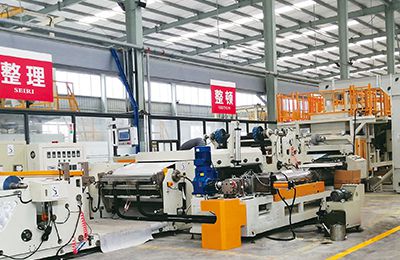

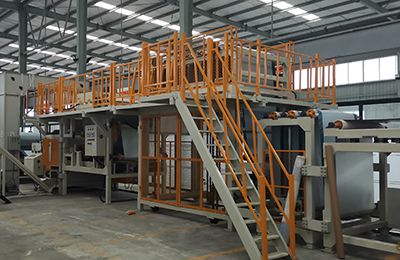

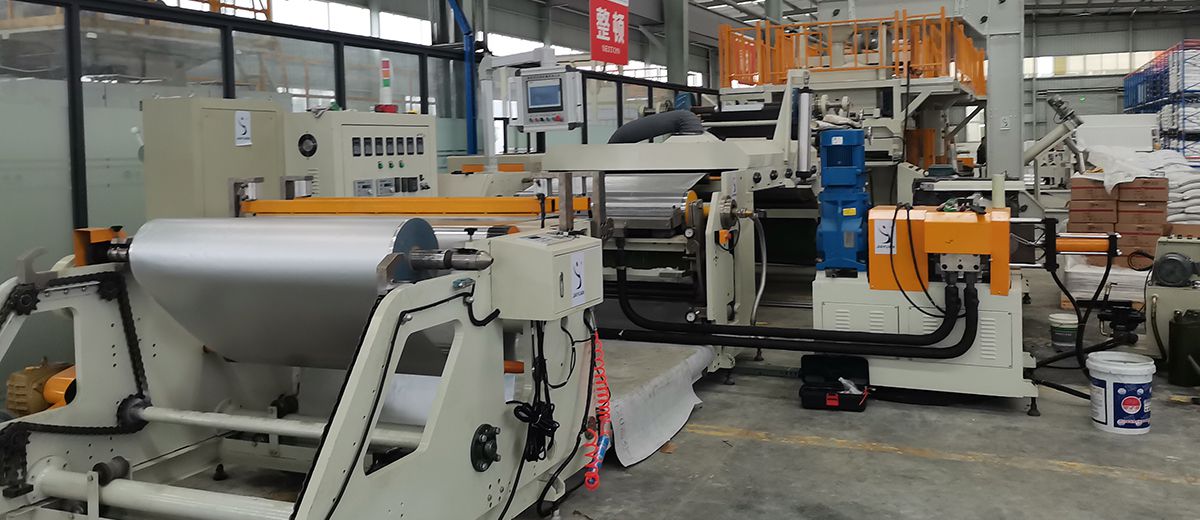

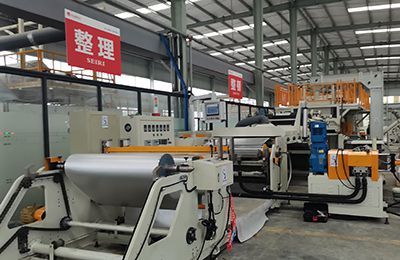

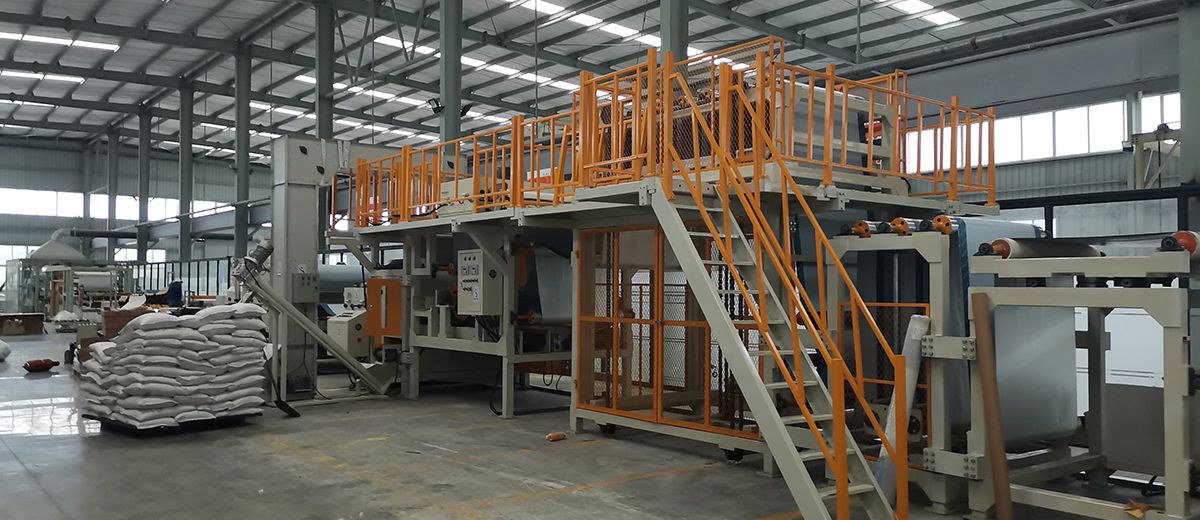

Automatic Butyl Self-Adhesive Waterproofing Membrane Production Line

Complete coating line for self-adhesive butyl rubber backing
Automatic Butyl Self-Adhesive Waterproofing Membrane Production Line
Automatic Butyl Self-Adhesive Waterproofing Membrane Production Line Automatic Butyl Self-Adhesive Waterproofing Membrane Production Line Automatic Butyl Self-Adhesive Waterproofing Membrane Production Line
Request a Quote

The automatic butyl self-adhesive waterproofing membrane production line comes equipped with adhesive coating, film laminating, sand spreading, sand placement, sand recycling, material storage, automatic cutting, winding, and unloading. The specially designed applicating head ensures uniform gluing. The produced waterproofing membrane can be widely applied in construction, leak repair, sealing, wind power industry, battery, etc. industries.

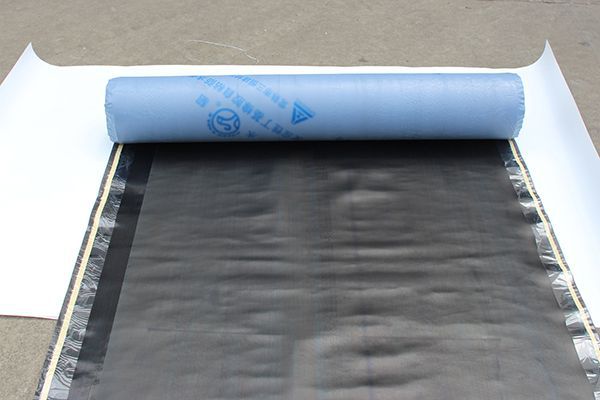

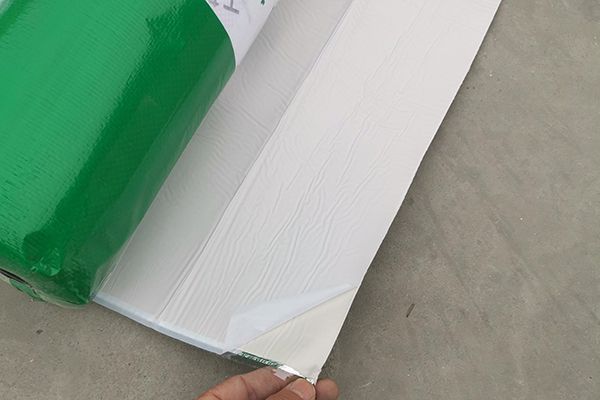

  • Product samples
  • Product samples
Specifications
Effective Coating Width 1200-3000mm
Coating Weight 80-500g/m²
Machine Speed 1-30m/min
Power Supply 380v ±15%50Hz

Parameters can be adjusted according to specific customer requirements.

Features
  • Automatic edge correction system, adhesive applicating pressure stabilizing system, as well as touch screen PLC control.
  • Specially designed applicator head flow channel, ensuring uniform and precise application.
  • Highly automated, convenient operation, labor-saving.
Main Components
  • Automatic winding mechanismAutomatic winding mechanism
  • Glue moldGlue mold
  • The isolation film composite mechanism of the coating machineThe isolation film composite mechanism of the coating machine
  • Device Backcoating deviceDevice Backcoating device
  • Automatic feeding system of gluing machineAutomatic feeding system of gluing machine
  • Waterproof material production equipment automatic sand mechanismWaterproof material production equipment automatic sand mechanism
  • Automatic deviation correction hydraulic unwinding machineAutomatic deviation correction hydraulic unwinding machine
