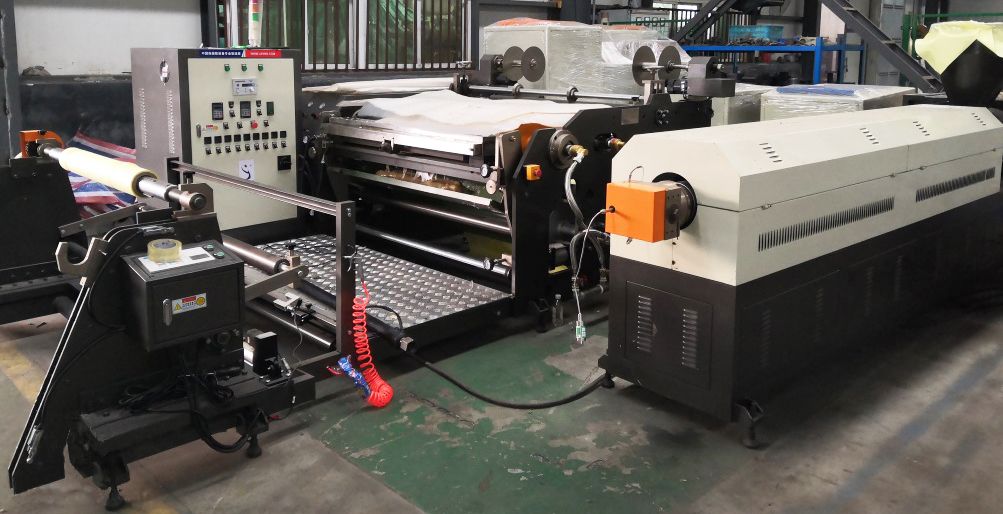

    Hot Melt Adhesive Web Extrusion Coating Machine, JYJ

    Hot melt coating machine suitable for making toe puffs and counters
    Hot Melt Adhesive Web Extrusion Coating Machine
    Request a Quote

    Hot melt adhesive web extrusion coater operates by extruding adhesives through a die onto a moving web or substrate. This process creates a uniform and controlled adhesive layer, preparing the coated web for various applications like labeling, packaging, and laminating.
    JIAYUAN JYJ hot melt adhesive web extrusion coater utilizes high-viscosity hot melt adhesives or thermoplastic materials, such as PA, PES, PU, EVA, TPU, etc. to perform coating. Especially suitable for handling anticorrosive tape, etc., as well as medium-to-high-temperature shoe chemical sheets including single-sided fine cloth hot melt adhesive sheets, toe puffs, etc.

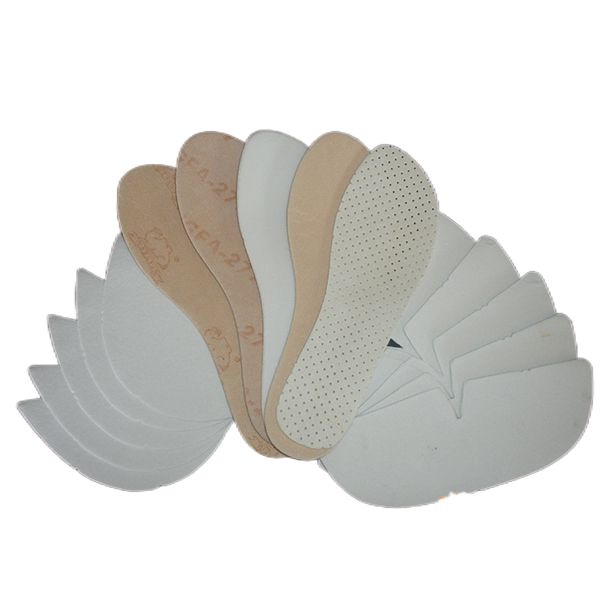

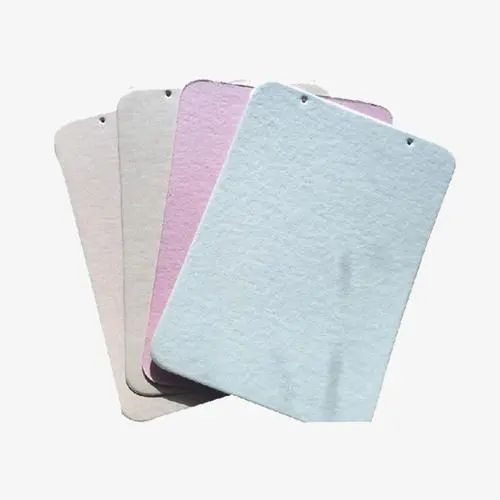

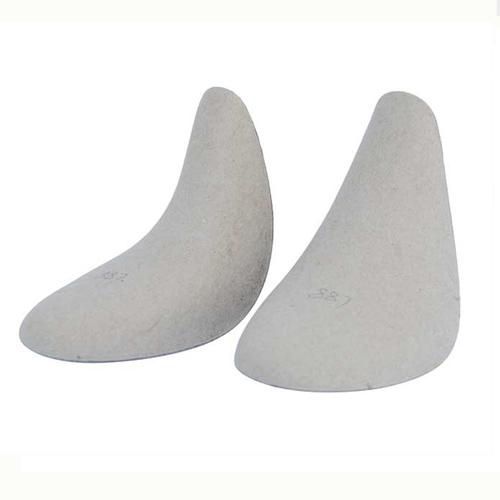

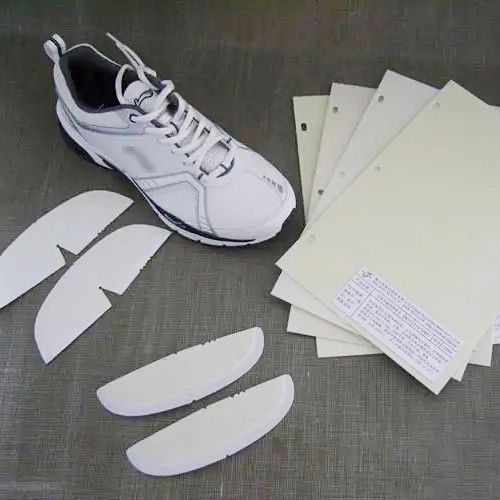

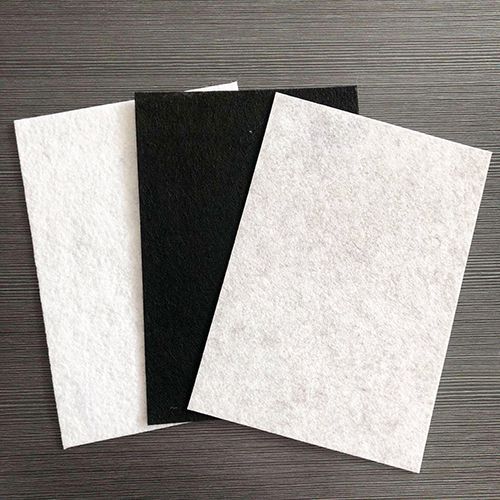

    • Product samples
    • Product samples
    • Product samples
    • Product samples
    • Product samples
    • Product samples
    Specifications
    Model JYJ
    Coating Width 400-1600mm
    Coating Weight 20-2000g/m²
    Coating Speed 50m/min
    Unwind Diameter 1000mm
    Rewind Diameter 700mm
    Web Guide System 1 set
    Length 5000mm
    Height 1400mm
    Power 38-60kW
    Power Supply 380v±15% 50Hz

    Parameters can be adjusted according to specific customer requirements.

    Features
    • Higher coating precision can be achieved via configuring automatic web change, hot melt adhesive pump and coating head.
    • Different coating effects can be achieved by replacing the roller; efficient cooling device ensures the coating speed.
    Main Components
    • PLC control systemPLC control system
    • Winding mechanismWinding mechanism
    • Winding mechanismWinding mechanism
    • Gluing systemGluing system
