Butyl Self-Adhesive Waterproof Strip Production Line

Butyl Self-Adhesive Waterproof Strip Production Line
Request a Quote

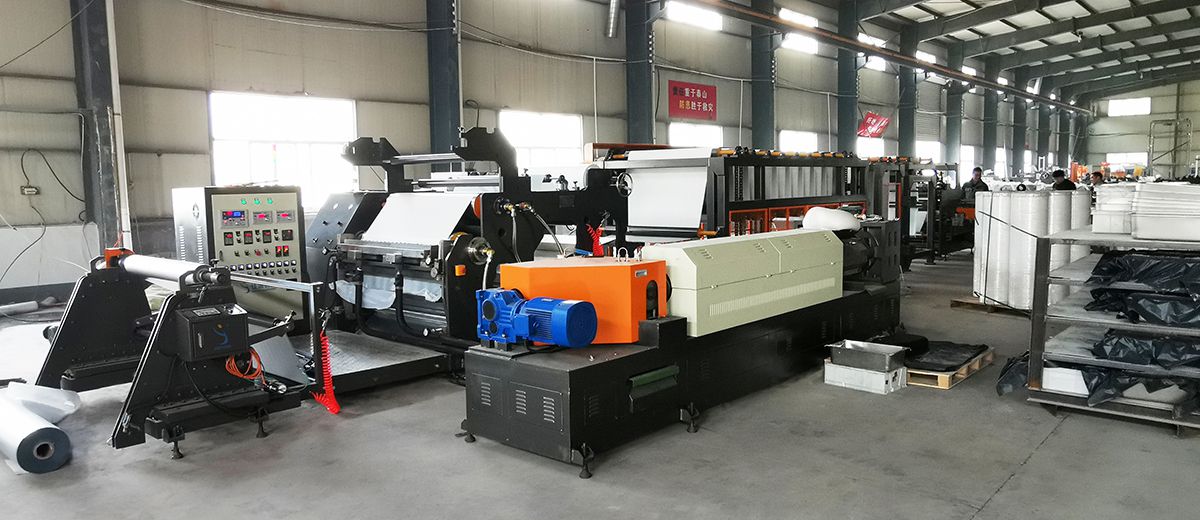

The butyl self-adhesive waterproof strip production line caters to butyl coating and polymer film substrates like CPE, PE, TPO, PVC, EPDM, etc. The line includes adhesive coating, laminating, material storage, automatic cutting, automatic winding, and unloading devices. Also equips automatic edge correction system and adhesive applicating pressure stabilizing system. Ideal for industries such as waterproofing, construction, leak repair, sealing, wind power, battery, etc.

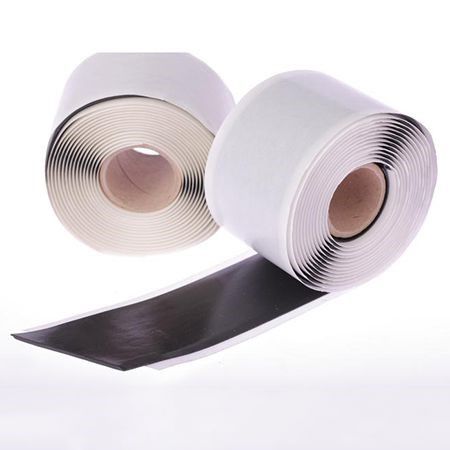

  • Product samples

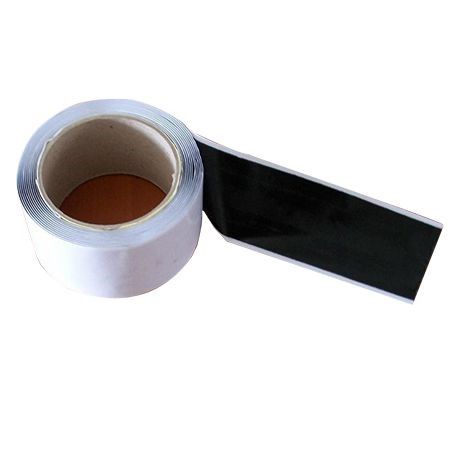

  • Product samples

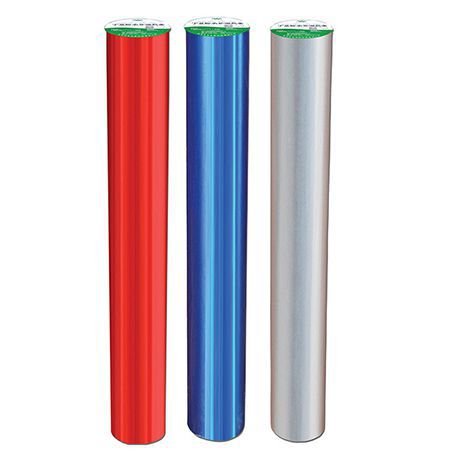

  • Product samples
Specifications
Effective Coating Width 1000-3000mm
Coating Weight 0.1-3mm
Machine Speed 1-30m/min
Power Supply 380v±15%50Hz

Parameters can be adjusted according to specific customer requirements.

Features
  • Optional touch-screen PLC.
  • Specially designed applicator head flow channel, ensuring uniform and precise application.
  • Highly automated, convenient operation, labor-saving.
Main Components
  • Automatic winding mechanismAutomatic winding mechanism
  • Glue moldGlue mold
  • The isolation film composite mechanism of the coating machineThe isolation film composite mechanism of the coating machine
  • Device Backcoating deviceDevice Backcoating device
  • Automatic feeding system of gluing machineAutomatic feeding system of gluing machine
  • Waterproof material production equipment automatic sand mechanismWaterproof material production equipment automatic sand mechanism
  • Automatic deviation correction hydraulic unwinding machineAutomatic deviation correction hydraulic unwinding machine
