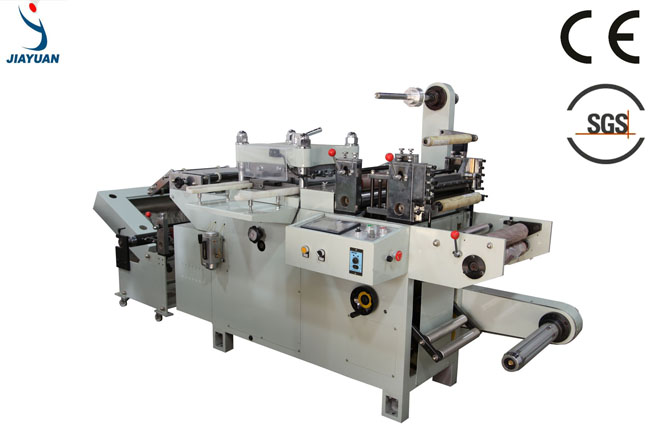

Protective Film and Screen Protector Die Cutter/ Die Cutting Machine

The protective film and screen protector die cutter, die cutting machine can be applicable in materials of stickers used in electric industry, information and technology industry, and automobile industry. In addition, other applicable materials are dust-proof materials like facial cotton, camera sponge, high density sponge, filter cotton, dust-proof net, and non-woven fabrics and so on, and shockproof products such as rubber pads, PORON pads, 3M, flame retardant EVA, high foam, etc.

Technical Parameters
Cutting speed 20-180(time/min)
Max web width 320mm
Max mould cutting width 300mm
Max unwind diameter 500mm
Max mould cutting length 290mm
Overprint Precision ±0.1mm
Total power 2.2KW
Power voltage 220V±10%
Machine weight About 1500kg
Overall dimensions(L×W×H) 2800×1100×1600mm
