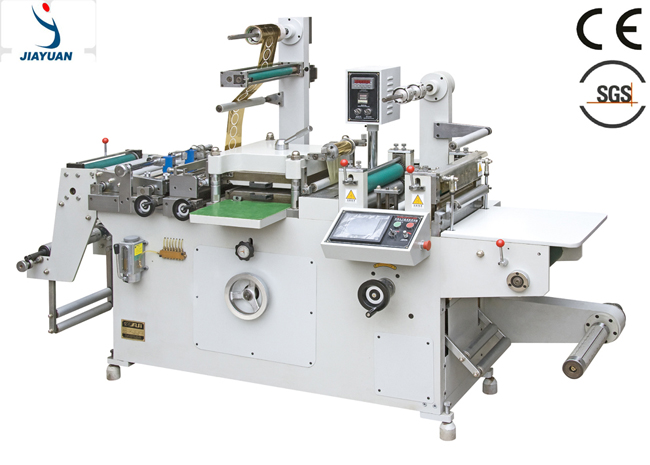

Automatic Adhesive Label Die Cutting Machine with Hot Stamping

Feature
1. The automatic adhesive label die cutting machine with hot stamping has a flatbed die cutting with high precision.
2. The material pulling and material slitting are controlled by computer.
3. The two sides and vertical direction of printing label are precisely tracked by three photocell eyes.
4. Die-cutting, film laminating, waste collecting, and slitting can be completed once.
5. This machine is suitable for paper sticker trademark, Dacron film trademark and laser anti-false trademark.
6. It is a piece of corollary equipment for Flexo pressing machine, continuous screen printing machine, intaglio printing machine, and anti-counterfeiting trademark mould machine.
7. It is ideal for trademark printing houses with high efficiency.

Technical Parameters
Cutting speed 20-135(time/min)
Max web width 320mm
Max mould cutting width 300mm
Max unwind diameter 500mm
Max mould cutting length 290mm
Overprint Precision ±0.1mm
Total power 2.2KW
Power voltage 220V±10%
Machine weight About 1500kg
Overall dimensions(L×W×H) 2800×1100×1600mm
