Rotary Die Cutting and Slitting Machine

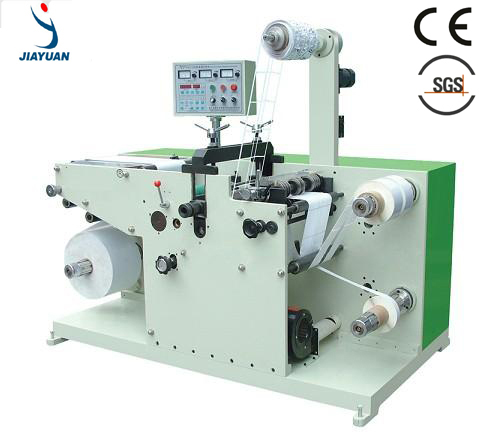

Equipped with a set of rotary die cutting station, this JFQ-320Y rotary die cutting and slitting machine is applicable for die cutting as well as slitting blank labels. Apart from automatic meter calculating and presetting, it features automatic halt, automatic deviation correcting by photoelectric eye and so on. In addition, this product supports stable performance but at high speed, as well as it works efficiently with high accuracy. What's more, it is easy for operation.

Technical Parameters
ModelJFQ-320Y
Slitting Speed75m/min
Die Cutting Speed70m/min
Die Cutting Width177-380mm
Max. Unwinding Diameter500mm
Max. Rewinding Diameter480mm
Max. Roll Width320mm
Total Power1.5kw
Weight of Machine 600kg
Overall Dimension(L×W×H)1600×900×1300mm

As an experienced rotary die cutting and slitting machine manufacturer in China, at Jiayuan we also offer computer control high speed slitting machine, small hot melt adhesive applicator, hot melt adhesive lamination machine, and more.
