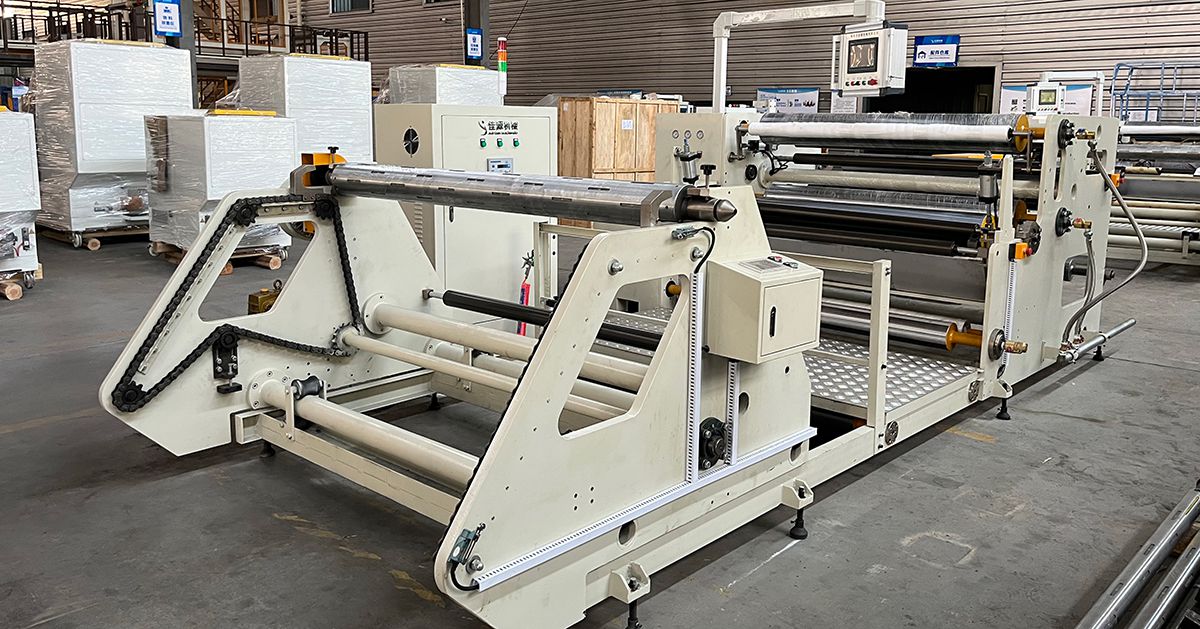

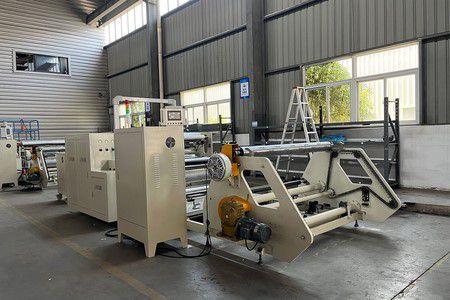

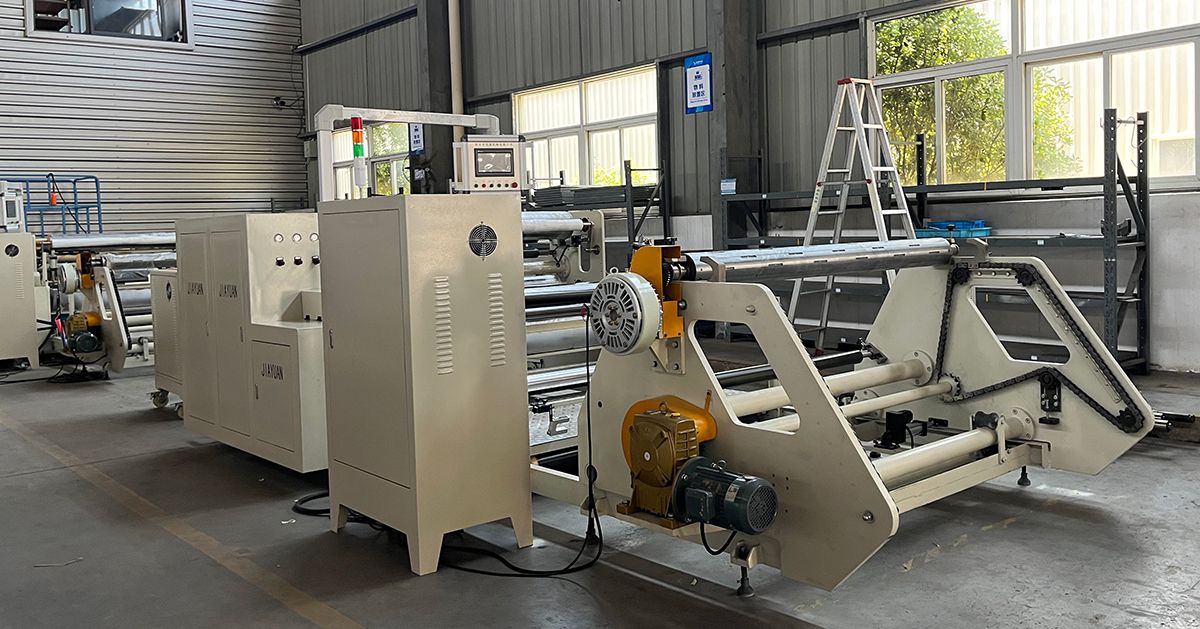

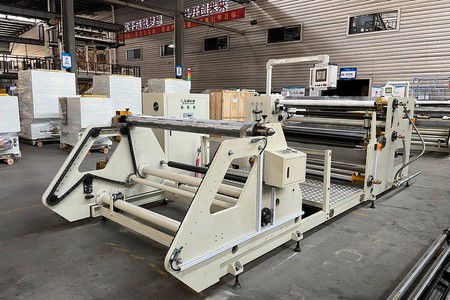

Wax Coating Machine for Food Packaging
The wax coating machine for food packaging is designed for producing food and cosmetics packaging materials, as well as for applying wax waterproofing treatment to various industrial papers. With a simple structure and easy operation, this machine offers reliable and durable service. The coating is uniform, thin, and stable, ensuring reliable product quality.
Specifications
| Model | JYT-L |
| Coating Width | 500-1500mm |
| Coating Weight | 3-50g/m² |
| Coating Speed | 10-100m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 700mm |
| Web Guide System | 1 set |
| Length | 6000mm |
| Height | 1500mm |
| Power | 38-60kW |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Main Components
PLC control system
Winding mechanism
Winding mechanism
Gluing system
